A superlight (sub-1kg), agile frame, modern geo - press fit PF30. Upgrade your old whip or build a sub 9kg race machine! 148mm rear end - means most bikes from the last 3-5 years will be a candidate for changeover.
5-year warranty on frames. Sydney, Aus distributor. If you need groupsets, send us a message.
The factory holds unpainted frames in stock.
When you choose a colour, the frame takes about less than 4 weeks to be painted and prepared to be shipped, which takes about a week. We do offer custom painting for no extra cost.

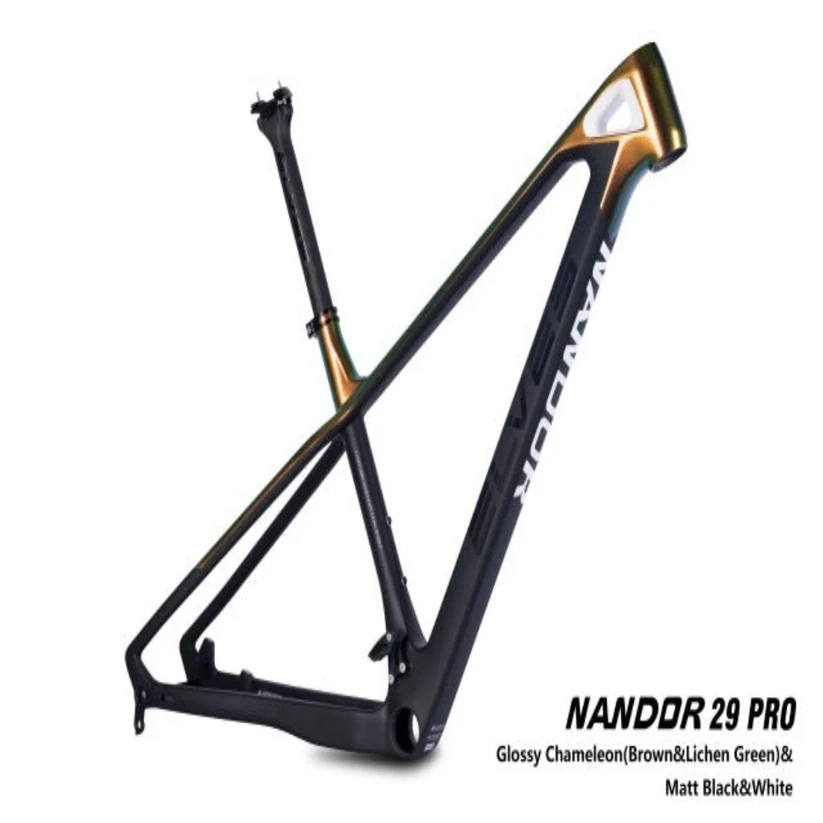

FRAME ELVES NANDOR Pro 29" XC FRAME
The Nandor PRO 29er XC complete race ready hardtail frame that utilises T1000 (30%) and T800 (70%) Toray carbon fibre and weighs in at just 980g (15” unpainted frame).
- Elves research and development has resulted in a frame geometry that boasts a longer reach and slacker headtube angles for a more confident high-speed descent.
- Engineered to perfection, our third generation Nandor has an “X” headtube, which at a first glance, may appear somewhat oversized. However, our engineer’s design thinking goes far deeper than simply having sufficient room for internal cabling.
- The combination of the trapezoidal downtube and “X” headtube, has resulted in our riders being able to channel every watt of power into the bike by utilising a stronger head tube design that resists cornering forces and aids precision steering delivering instantaneous responses and optimal power.
Combined with 148mm boost bottom bracket and rear axle widths and the ability to accept both 29” & 27.5” wheels, our Nandor PRO 29er is the perfect frame to build into your XC perfect bike.
FRAME: FULL-CARBON (TOARY T800 + T1000 FIBER)
GEOMETRY: Pro
SEAT CLAMP：φ36.8MM
WEIGHT: 900g (29X15" W/T Paint and Metal Parts)
HEADSET: 1-1/2" LOWER, 1-1/2" UPPER
BRAKE MOUNT: 160mm DIRECT POST MOUNT
BOTTOM BRACKET：PRESS FIT PF30
ELECTRIC DRIVETRAIN: Di2&E-TAP COMPATIBLE
EPS MOLDING TECHNOLOGY
Full INTEGRATED CABLE ROUTING
Rear Hub Spec: Boost 12X148MM
FORK TRAVEL RECOMMENDS: 80MM~120MM
BIGGEST CHAINRING: UP TO 38T
MAX ROTOR SIZE: UP TO 160MM
WHEELS SZIE: 29" & 27.5"
MAX TYRE SZIE: 29 X 2.3"
SEAT POST ELVES NANDOR SEATPOST
LENGTH: 400mm
WEIGHT: 165G
TWO BOLT PIVOT PRECISE ADJUSTMENT
DIAMETER: 31.6MM
OFFSET: 0mm AND 25mm SETBACK SEATPOST AVAILABLE
SEATPOST: FULL-CARBON
FRAME SIZE
S(29X15") M(29X17") L(29X19")
ACCESSORIES
PF30, CERAMIC BEARINGS BB
ELVES HEADSET+ HPS04 SPACERS(10mm+5mm)
REAR DERAILLEUR HANGER X2
THRU AXLE:12X173MM(THREAD:M12X1.5)
Chain Guide
Chain stay Protector
Internal Housing Damper
RECOMMENDED TORQUE VALUES:
Saddle Rail Bolts:12Nm
Seat Clamp:6Nm
Rear Derailleur Hanger Bolts:2.5Nm
Chain Guide Bolts: 2.5Nm
Water Bottle Cage Bolts:3Nm
Brake Caliper: 6Nm
Thru Axle: 6Nm
CERTIFICATION
BOTH EN 14766 AND ISO 4210-6:2014
